Agents

Agents in Archestra are invoked through Prompts. While the primary method is via the Chat interface or API, agents can also be triggered through alternative channels like A2A (Agent-to-Agent) and incoming email.

A2A (Agent-to-Agent)

A2A is a JSON-RPC 2.0 gateway that allows external systems to invoke agents programmatically. Each Prompt exposes two endpoints:

• Agent Card Discovery: GET /v1/a2a/:promptId/.well-known/agent.json
• Message Execution: POST /v1/a2a/:promptId

Authentication

All A2A requests require Bearer token authentication. Generate tokens via the Profile's API key settings or use team tokens for organization-wide access.

Agent Card

The discovery endpoint returns an AgentCard describing the agent's capabilities:

{
  "name": "My Agent",
  "description": "Agent description from prompt",
  "version": "1.0.0",
  "capabilities": {
    "streaming": false,
    "pushNotifications": false
  },
  "defaultInputModes": ["text"],
  "defaultOutputModes": ["text"],
  "skills": [{ "id": "default", "name": "Default Skill" }]
}

Sending Messages

Send JSON-RPC 2.0 requests to execute the agent:

curl -X POST "https://api.example.com/v1/a2a/<promptId>" \
  -H "Authorization: Bearer <token>" \
  -H "Content-Type: application/json" \
  -d '{
    "jsonrpc": "2.0",
    "id": "1",
    "method": "message/send",
    "params": {
      "message": {
        "parts": [{ "kind": "text", "text": "Hello agent!" }]
      }
    }
  }'

Response:

{
  "jsonrpc": "2.0",
  "id": "1",
  "result": {
    "messageId": "msg-...",
    "role": "agent",
    "parts": [{ "kind": "text", "text": "Agent response..." }]
  }
}

Delegation Chain

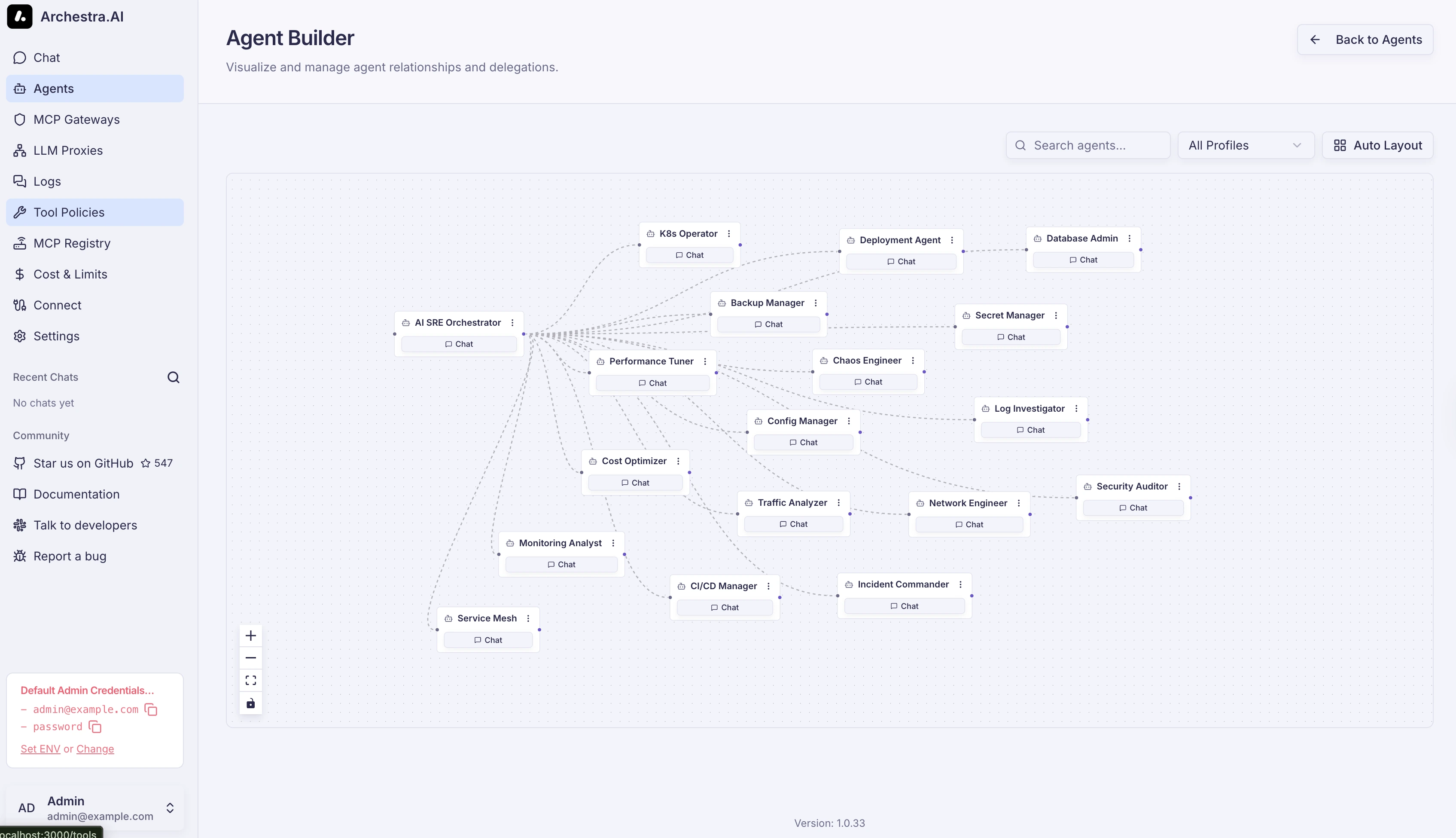

A2A supports nested agent-to-agent calls. When one agent invokes another, the delegation chain tracks the call path for observability. This enables multi-step agent workflows where agents can use other agents as tools.

Configuration

A2A uses the same LLM configuration as Chat. See Deployment - Environment Variables for the full list of ARCHESTRA_CHAT_* variables.

Incoming Email

Incoming Email allows external users to invoke agents by sending emails to auto-generated addresses. Each Prompt gets a unique email address using plus-addressing (e.g., mailbox+agent-<promptId>@domain.com).

When an email arrives:

1. Microsoft Graph sends a webhook notification to Archestra
2. Archestra extracts the Prompt ID from the recipient address
3. The email body becomes the agent's input message
4. The agent executes and generates a response
5. Optionally, the agent's response is sent back as an email reply

Conversation History

When processing emails that are part of a thread (replies), Archestra automatically fetches the conversation history and provides it to the agent. This allows the agent to understand the full context of the conversation and respond appropriately to follow-up messages.

Email Reply

When email replies are enabled, the agent's response is automatically sent back to the original sender. The reply:

• Maintains the email conversation thread
• Uses the original message's "Re:" subject prefix
• Displays the agent's name as the sender

Prerequisites

• Microsoft 365 mailbox (Exchange Online)
• Azure AD application with Mail.Read application permission
• Publicly accessible webhook URL

Azure AD Application Setup

1. Create an App Registration in Azure Portal
2. Add the following application permissions (not delegated) under Microsoft Graph:
   • Mail.Read - Required for receiving emails
   • Mail.Send - Required for sending reply emails (optional)
3. Grant admin consent for the permissions
4. Create a client secret and note the value

Configuration

Set these environment variables (see Deployment for details):

ARCHESTRA_AGENTS_INCOMING_EMAIL_PROVIDER=outlook
ARCHESTRA_AGENTS_INCOMING_EMAIL_OUTLOOK_TENANT_ID=<tenant-id>
ARCHESTRA_AGENTS_INCOMING_EMAIL_OUTLOOK_CLIENT_ID=<client-id>
ARCHESTRA_AGENTS_INCOMING_EMAIL_OUTLOOK_CLIENT_SECRET=<client-secret>
ARCHESTRA_AGENTS_INCOMING_EMAIL_OUTLOOK_MAILBOX_ADDRESS=agents@yourcompany.com

Webhook Setup

Option 1: Automatic - Set ARCHESTRA_AGENTS_INCOMING_EMAIL_OUTLOOK_WEBHOOK_URL and the subscription is created on server startup.

Option 2: Manual - Navigate to Settings > Incoming Email and enter your webhook URL.

Microsoft Graph subscriptions expire after 3 days. Archestra automatically renews subscriptions before expiration.

Email Address Format

Agent email addresses follow the pattern:

<mailbox-local>+agent-<promptId>@<domain>

For example, if your mailbox is agents@company.com and your Prompt ID is abc12345-6789-..., emails sent to:

agents+agent-abc123456789...@company.com

will invoke that specific agent.
