AI SDKs and Frameworks

You can route requests from any OpenAI-compatible AI SDK or framework through Archestra's LLM Proxy. Requests gain central authentication, audit logging, cost tracking, and security guardrails.

Requirements

You need a running Archestra deployment, an OpenAI provider key configured in Archestra, and a standard virtual key mapped to that provider. Use the virtual key as the client API key.

The client application must be able to reach Archestra's API. The examples use http://localhost:9000/v1/openai; replace this with your deployment's base URL. Applications running inside Docker containers should use a reachable network host such as host.docker.internal rather than localhost.

Session IDs for Guardrails

Send the same X-Appa-Session-ID for every model call in a conversation. Guardrails use this ID to keep policy state, approvals, and restrictions across follow-up turns, tool results, and retries.

If your app already has a conversation or thread ID, use it. If not, generate a UUID when the conversation starts, save it in your database, and load it again when the user replies. Never generate a new ID on every request, and never share one client instance across different users.

Vercel AI SDK

The Vercel AI SDK OpenAI provider accepts a custom base URL and API key.

Install the required packages in your application:

bash

pnpm add ai @ai-sdk/openai

Configure the provider with your Archestra base URL and virtual key:

typescript

import { createOpenAI } from "@ai-sdk/openai";
import { generateText } from "ai";

const openai = createOpenAI({
  baseURL: "http://localhost:9000/v1/openai",
  apiKey: process.env.OPENAI_API_KEY,
});

const result = await generateText({
  model: openai.chat("gpt-4o"),
  prompt: "Reply with connection verified.",
});
console.log(result.text);

The explicit .chat() selects Chat Completions. Keep this code in your server environment so virtual keys are not leaked into client-side browser bundles.

Configure Guardrails

Add the session header to createOpenAI:

typescript

import { randomUUID } from "node:crypto";
import { createOpenAI } from "@ai-sdk/openai";

// Create once per conversation; save and reuse across all its turns.
const sessionId = randomUUID();
const openai = createOpenAI({
  baseURL: "http://localhost:9000/v1/openai",
  apiKey: process.env.OPENAI_API_KEY,
  headers: {
    "X-Appa-Session-ID": sessionId,
  },
});

Reuse openai for every model call in this conversation. For a subagent, pass its own ID along with the parent's sessionId:

typescript

const childSessionId = randomUUID();
const childOpenai = createOpenAI({
  baseURL: "http://localhost:9000/v1/openai",
  apiKey: process.env.OPENAI_API_KEY,
  headers: {
    "X-Appa-Session-ID": childSessionId,
    "X-Appa-Parent-ID": sessionId,
  },
});

Pydantic AI

Pydantic AI connects to Archestra using its built-in OpenAIProvider with a custom base URL.

Install Pydantic AI in your Python environment:

bash

pip install pydantic-ai

Configure the model with your Archestra endpoint and virtual key:

python

import os
from pydantic_ai import Agent
from pydantic_ai.models.openai import OpenAIChatModel
from pydantic_ai.providers.openai import OpenAIProvider

model = OpenAIChatModel(
    "gpt-4o",
    provider=OpenAIProvider(
        base_url="http://localhost:9000/v1/openai",
        api_key=os.environ["OPENAI_API_KEY"],
    ),
)
agent = Agent(model)
result = agent.run_sync("Reply with connection verified.")
print(result.output)

OpenAIChatModel selects Chat Completions. For Responses, use OpenAIResponsesModel with the same provider.

Configure Guardrails

Pass an AsyncOpenAI client with the session header to OpenAIProvider:

python

import os
import uuid
from openai import AsyncOpenAI
from pydantic_ai import Agent
from pydantic_ai.models.openai import OpenAIChatModel
from pydantic_ai.providers.openai import OpenAIProvider

# Create once per conversation; save and reuse across all its turns.
session_id = str(uuid.uuid4())
client = AsyncOpenAI(
    base_url="http://localhost:9000/v1/openai",
    api_key=os.environ["OPENAI_API_KEY"],
    default_headers={"X-Appa-Session-ID": session_id},
)
model = OpenAIChatModel("gpt-4o", provider=OpenAIProvider(openai_client=client))
agent = Agent(model)

Reuse agent and client for all calls in this conversation. For a subagent, create its own ID and pass the parent's session_id:

python

child_session_id = str(uuid.uuid4())
child_client = AsyncOpenAI(
    base_url="http://localhost:9000/v1/openai",
    api_key=os.environ["OPENAI_API_KEY"],
    default_headers={
        "X-Appa-Session-ID": child_session_id,
        "X-Appa-Parent-ID": session_id,
    },
)

Mastra

Mastra supports custom OpenAI-compatible endpoints for agent execution.

Install Mastra in your TypeScript project:

bash

pnpm add @mastra/core

Configure your agent's model with the Archestra base URL:

typescript

import { Agent } from "@mastra/core/agent";

const agent = new Agent({
  id: "connection-check",
  name: "Connection Check",
  instructions: "Answer the user's request.",
  model: {
    id: "openai/gpt-4o",
    url: "http://localhost:9000/v1/openai",
    apiKey: process.env.OPENAI_API_KEY,
  },
});

const result = await agent.generate("Reply with connection verified.");
console.log(result.text);

Use the base URL rather than /chat/completions. The openai/ prefix selects the provider, followed by the upstream model name.

Configure Guardrails

Add the session header to the model configuration:

typescript

import { randomUUID } from "node:crypto";
import { Agent } from "@mastra/core/agent";

// Create once per conversation; save and reuse across all its turns.
const sessionId = randomUUID();
const agent = new Agent({
  id: "connection-check",
  name: "Connection Check",
  instructions: "Answer the user's request.",
  model: {
    id: "openai/gpt-4o",
    url: "http://localhost:9000/v1/openai",
    apiKey: process.env.OPENAI_API_KEY,
    headers: {
      "X-Appa-Session-ID": sessionId,
    },
  },
});

Reuse agent for every call in this conversation. For a subagent, create its own ID and pass the parent's sessionId:

typescript

const childSessionId = randomUUID();
const subagent = new Agent({
  id: "subagent",
  name: "Subagent",
  instructions: "Handle delegated tasks.",
  model: {
    id: "openai/gpt-4o",
    url: "http://localhost:9000/v1/openai",
    apiKey: process.env.OPENAI_API_KEY,
    headers: {
      "X-Appa-Session-ID": childSessionId,
      "X-Appa-Parent-ID": sessionId,
    },
  },
});

Keep the child agent instance for all requests in that child's task. Only create a new ID when starting a different child agent.

Verify the Connection

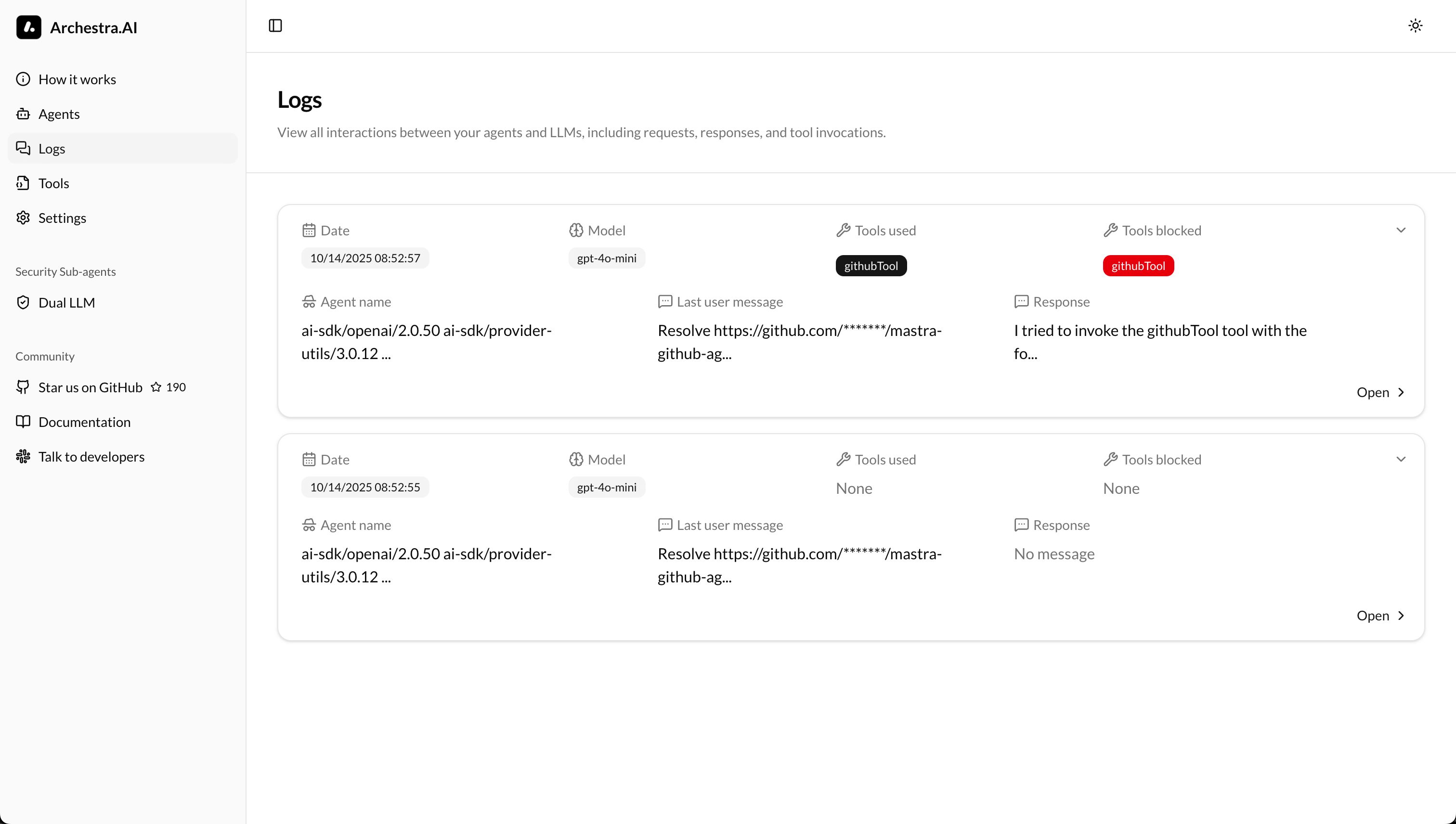

Send Reply with connection verified. from your application and verify the response. Open Logs → LLM Proxy in Archestra to confirm the request appears with the expected model, virtual key, and timestamp.

A 401 status indicates a missing or invalid virtual key. Ensure the virtual key has an active provider mapping.
A connection error means the client cannot reach Archestra's API endpoint.
A model error indicates the requested model is unavailable under the mapped provider.

To grant your SDK agents access to remote tools, connect them to an MCP Gateway.
