SSO

Sign users in with their existing identity provider via OIDC or SAML

5 min read

Single Sign-On (SSO) lets users sign in to Archestra with the identity they already have at work — Microsoft, Okta, Google, GitHub, GitLab, or any OIDC/SAML provider — instead of managing yet another username and password.

How sign-in works

  1. Admin configures an Identity Provider in Settings > Identity Providers
  2. SSO buttons appear on the Archestra sign-in page for every enabled provider
  3. The user clicks the button and authenticates with their identity provider
  4. Archestra applies role mapping and team sync rules
  5. The user is provisioned (if new) and logged in

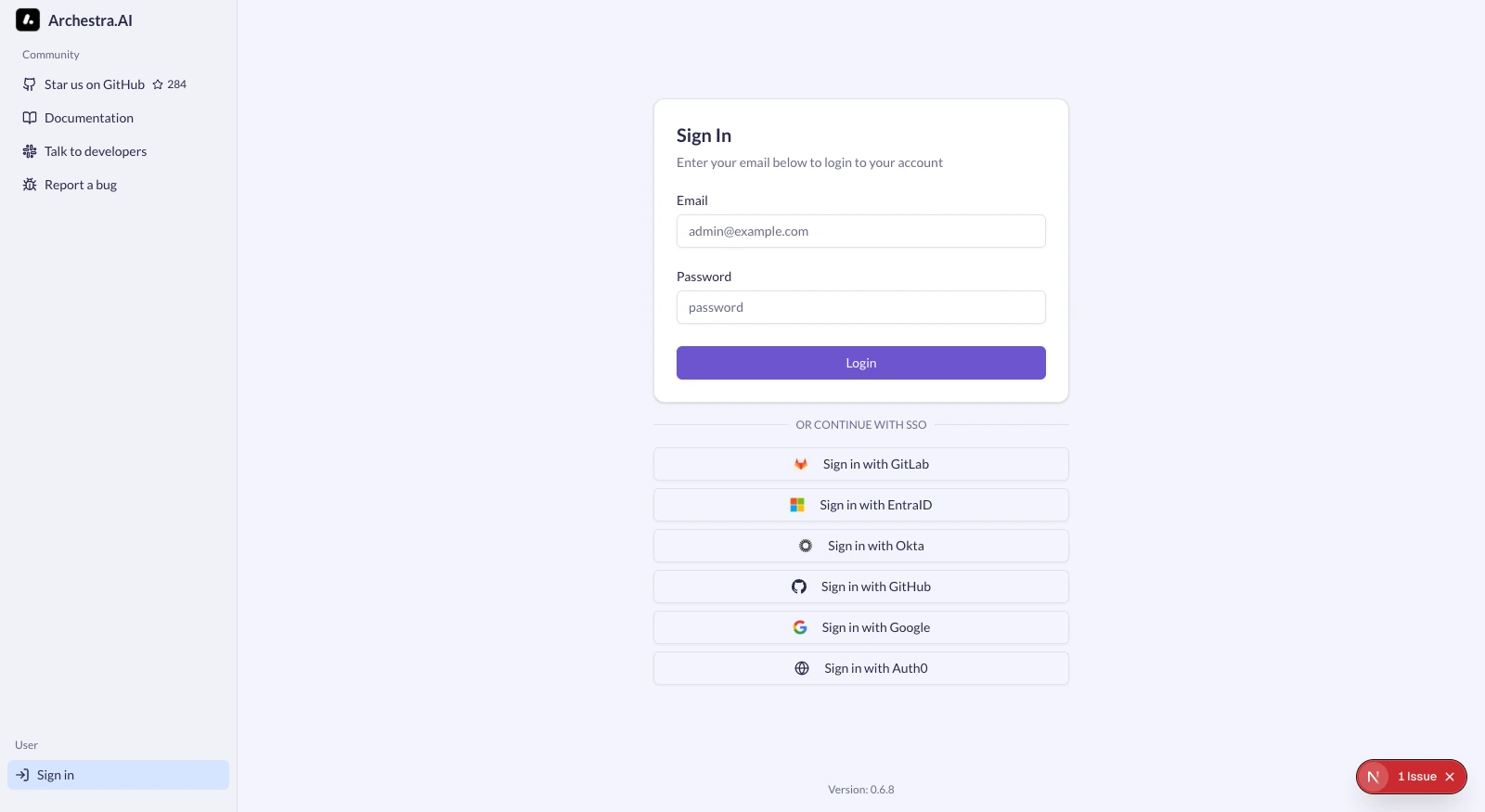

Sign-in with SSO

Supported protocols

Archestra speaks two SSO protocols:

ProtocolUse it for
OIDC (OpenID Connect)Microsoft Entra ID, Okta, Google, GitHub, GitLab, Auth0, Keycloak, any modern OAuth 2.0 + OIDC provider
SAML 2.0Older enterprise IdPs that don't speak OIDC, or organizations standardized on SAML

OIDC is the default choice for new setups. SAML is supported for compliance-driven environments.

Callback URLs

Each protocol uses a different callback URL format. Both contain a {ProviderId} segment that is case-sensitive and must match the provider ID configured in Archestra exactly (for example Okta, EntraID, Google).

OIDC

https://your-archestra-domain.com/api/auth/sso/callback/{ProviderId}

For local development:

http://localhost:3000/api/auth/sso/callback/{ProviderId}

SAML (Assertion Consumer Service URL)

https://your-archestra-domain.com/api/auth/sso/saml2/sp/acs/{ProviderId}

For local development:

http://localhost:3000/api/auth/sso/saml2/sp/acs/{ProviderId}

Allowed Email Domains

The Allowed Email Domains field is an optional Archestra-side sign-in boundary. When configured, users can sign in with that provider only when the email returned by the IdP matches one of the configured domains.

Use comma-separated domains for multi-domain SSO:

company.com, subsidiary.com

Subdomains are included automatically — engineering.company.com matches company.com.

User provisioning

When a user authenticates via SSO for the first time:

  1. A new user account is created with the email and name from the identity provider
  2. The user's role is determined by role mapping rules (if configured), otherwise the provider's default role (or Member)
  3. The user is added to the organization
  4. A session is created and the user is logged in

Subsequent logins link to the existing account by email. Role mapping rules are evaluated on each login, so role changes in the IdP take effect on next sign-in.

Account linking

If a user already has an Archestra account (for example created via email/password), SSO will automatically link to it when:

  • The email addresses match
  • The SSO provider is trusted for account linking — Archestra trusts the built-in providers (Okta, Google, GitHub, GitLab, Entra ID) plus any custom Generic OIDC or Generic SAML provider configured in Identity Providers

Disabling Basic Authentication

Once SSO is working, you can disable the username/password login form to enforce SSO-only authentication. Set ARCHESTRA_AUTH_DISABLE_BASIC_AUTH=true and restart the backend. See Deployment — Environment Variables.

Important: verify at least one SSO provider is working before disabling basic auth, or you (and your admins) will be locked out.

Disabling User Invitations

For organizations using SSO with auto-provisioning, you can disable the manual invitation system entirely. This hides the invitation UI and blocks invitation API endpoints. Set ARCHESTRA_AUTH_DISABLE_INVITATIONS=true. See Deployment — Environment Variables.

Per-provider walkthroughs

Each provider has its own end-to-end setup page:

For Google, GitHub, GitLab, Generic OIDC, and Generic SAML, see the per-provider sections on the Identity Providers index.

Troubleshooting

state_mismatch error

Cookies are being blocked, or the callback URL doesn't match.

  • Third-party cookies must be enabled in the browser
  • The callback URL configured at the IdP must exactly match the Archestra callback URL, including the case-sensitive {ProviderId} segment

missing_user_info error

The IdP didn't return the required user attributes. For GitHub, the user must have a public email set in their GitHub profile.

account not linked error

The SSO provider is not trusted for automatic account linking, or the provider returned an email that doesn't match the existing account. Verify the provider is configured in Identity Providers and the user is signing in with the same email as their existing account.

invalid_dpop_proof error (Okta)

DPoP is enabled on the Okta application. Disable Require Demonstrating Proof of Possession (DPoP) header in token requests in the Okta app's security settings.

account_not_found error (SAML)

The SAML assertion didn't contain the required user attributes. Configure your IdP to send:

  • NameID in emailAddress format
  • email attribute
  • firstName and lastName attributes (recommended)

signature_validation_failed error (SAML)

The SAML response signature couldn't be verified.

  • The IdP certificate in Archestra must match the current signing certificate from your IdP
  • If using IdP metadata, re-download it (certificates rotate)
